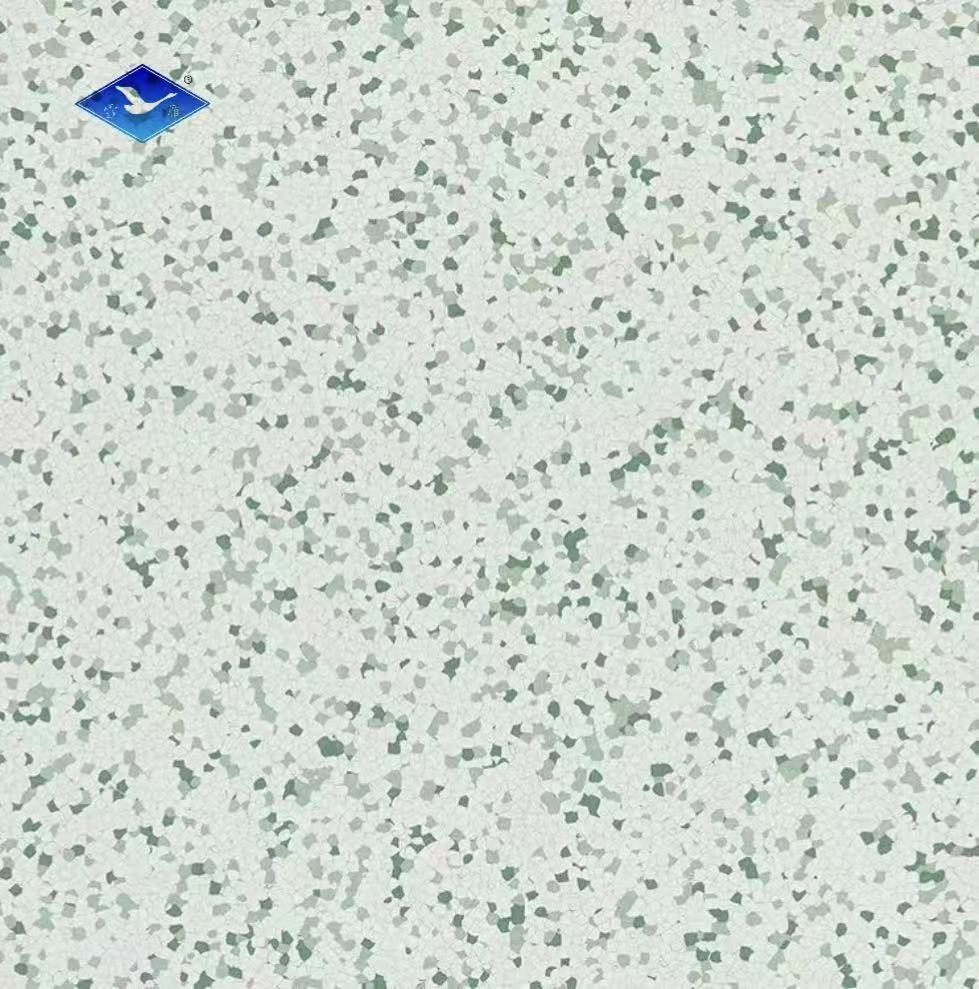

World-Class Antistatic PVC Vinyl Flooring Size 610mmx610mmx2.5mm Lab Clean Room Application
World-Class Antistatic PVC Vinyl Flooring Size 610mmx610mmx2.5mm Lab Clean Room Application
World-Class Antistatic PVC Vinyl Flooring Size 610mmx610mmx2.5mm Lab Clean Room Application
World-Class Antistatic PVC Vinyl Flooring Size 610mmx610mmx2.5mm Lab Clean Room Application
World-Class Antistatic PVC Vinyl Flooring Size 610mmx610mmx2.5mm Lab Clean Room Application
1 / 5
World-Class Antistatic PVC Vinyl Flooring Size 610mmx610mmx2.5mm Lab Clean Room Application
World-Class Antistatic PVC Vinyl Flooring Size 610mmx610mmx2.5mm Lab Clean Room Application
World-Class Antistatic PVC Vinyl Flooring Size 610mmx610mmx2.5mm Lab Clean Room Application
World-Class Antistatic PVC Vinyl Flooring Size 610mmx610mmx2.5mm Lab Clean Room Application
World-Class Antistatic PVC Vinyl Flooring Size 610mmx610mmx2.5mm Lab Clean Room Application

World-Class Antistatic PVC Vinyl Flooring Size 610mmx610mmx2.5mm Lab Clean Room Application

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Info

Material
PVC
Size
600*600mm
Function
Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static
Certification
CE, ISO, ASTM, Floorscore
Electronic Resistance
10e6~10e9 Ohm or 10e4~10e6 Ohm
Application
Cleanroom, Electronic Workshop, Labs, Offices
Specification
2.0-3.0mm Thickness
Production Capacity
200,000 Square Meters Per Month

Product Description

Anti-Static Floor Advantages:
  • Electrostatic Dissipation: Utilizes an electrostatically conductive network to ensure permanent conductive properties and prevent ESD damage.
  • High-Quality Material: Made from PVC resin, conductive materials, and stabilizers for maximum durability.
  • Decorative Network Pattern: Aesthetically pleasing design suitable for offices and cleanrooms.
  • Safety & Protection: Prevents static accumulation in electronic manufacturing and data centers.
  • Easy Installation: Efficient upgrades and simple maintenance for long-term cost-effectiveness.

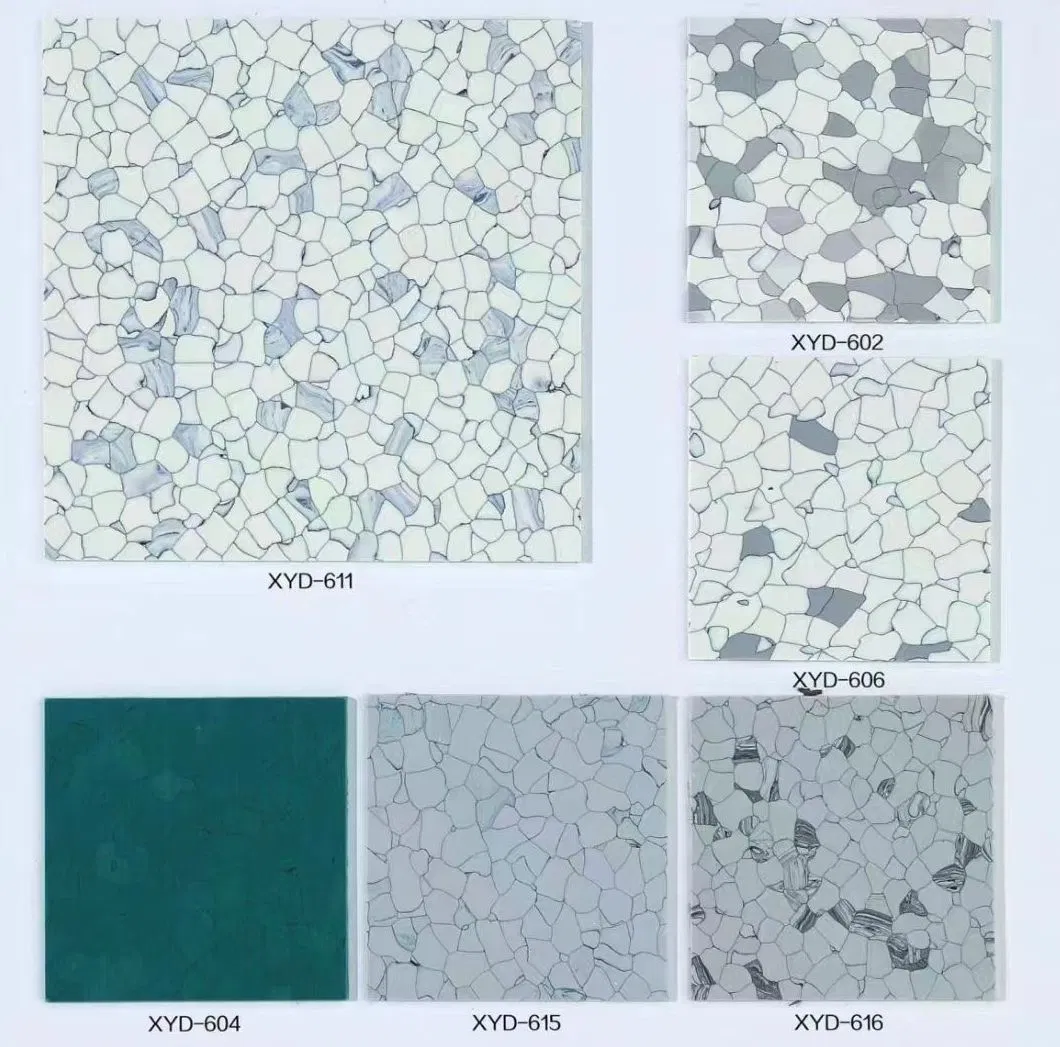

ESD Floor Detail

Technical Parameters

Property Standard Value
Thickness SJ/T11236-2020 / ISO 24346 2.0, 2.5, 3.0mm
Electrical Resistance EN 1081 10^4 - 10^9 Ω
Static Decay GJB3007A-2009 ≤2.0 Sec
Fire Resistance EN13501-1 / ASTM E648 Class Bt-S1 / Class 1
Slip Resistance Wet DIN 51130 R9
Chemical Resistance EN ISO 26987 Excellent (OK)

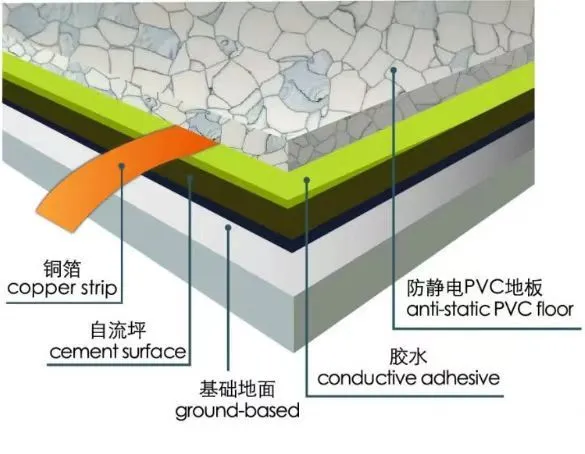

Product Parameter Image 1

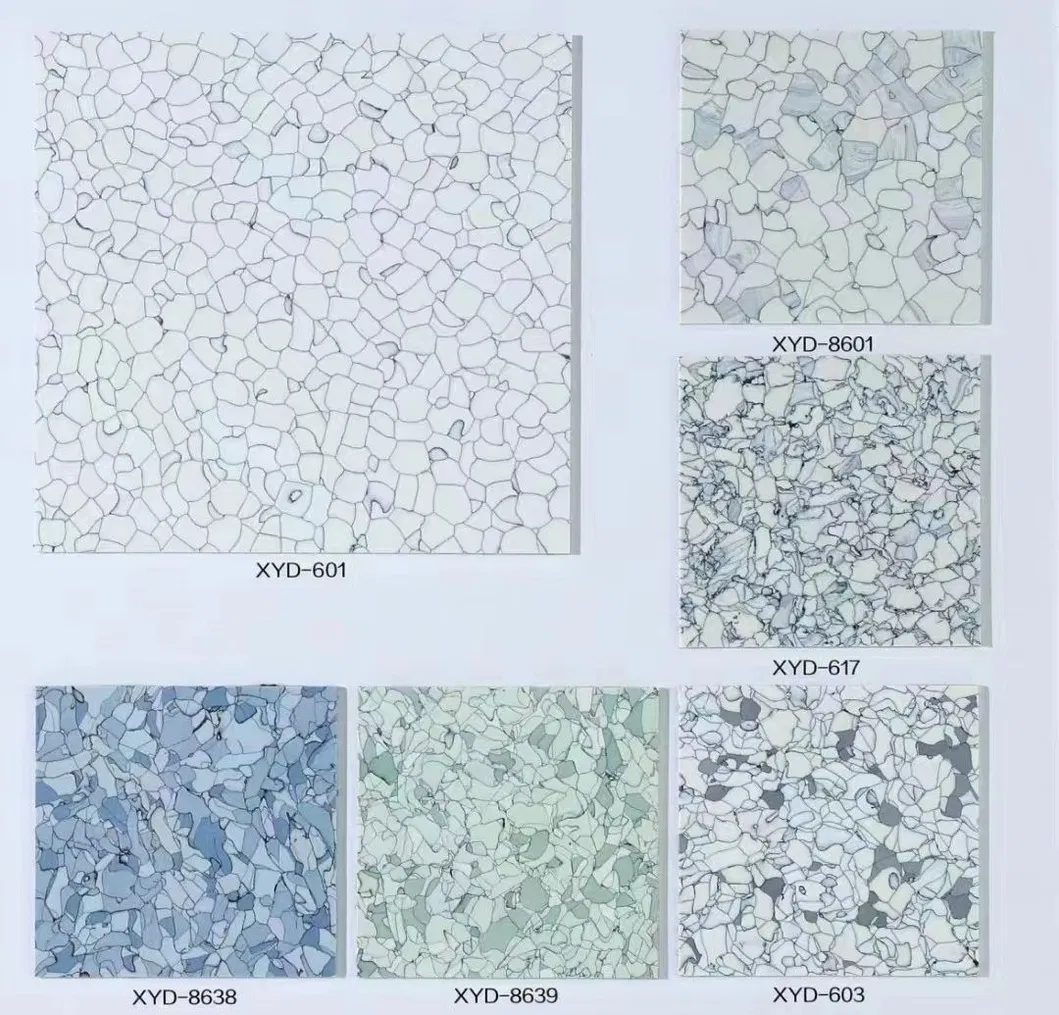

Product Parameter Image 2

Core Technology

Advanced Plasticizer: We utilize the new generation of DOTP plasticizer, which is eco-friendly and does not contain benzene ring structures (phthalate-free).

RHPP Technology: A physical method of rolling raw materials in a high-pressure environment. This increases floor density and creates a stain-resistant film that closes pores, ensuring permanent conductive properties without losing carbon fiber during cleaning.

Technology View 1

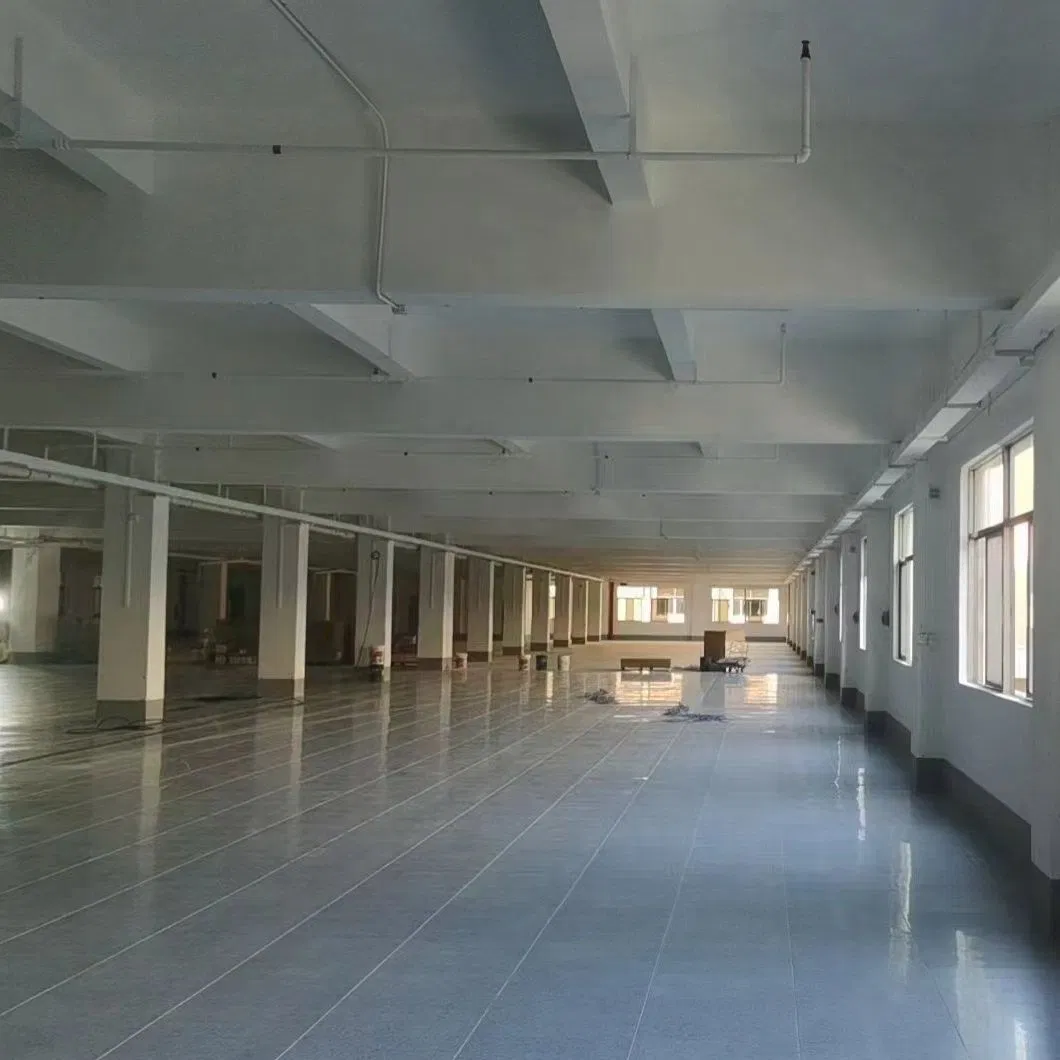

Technology View 2

Installation & Certification

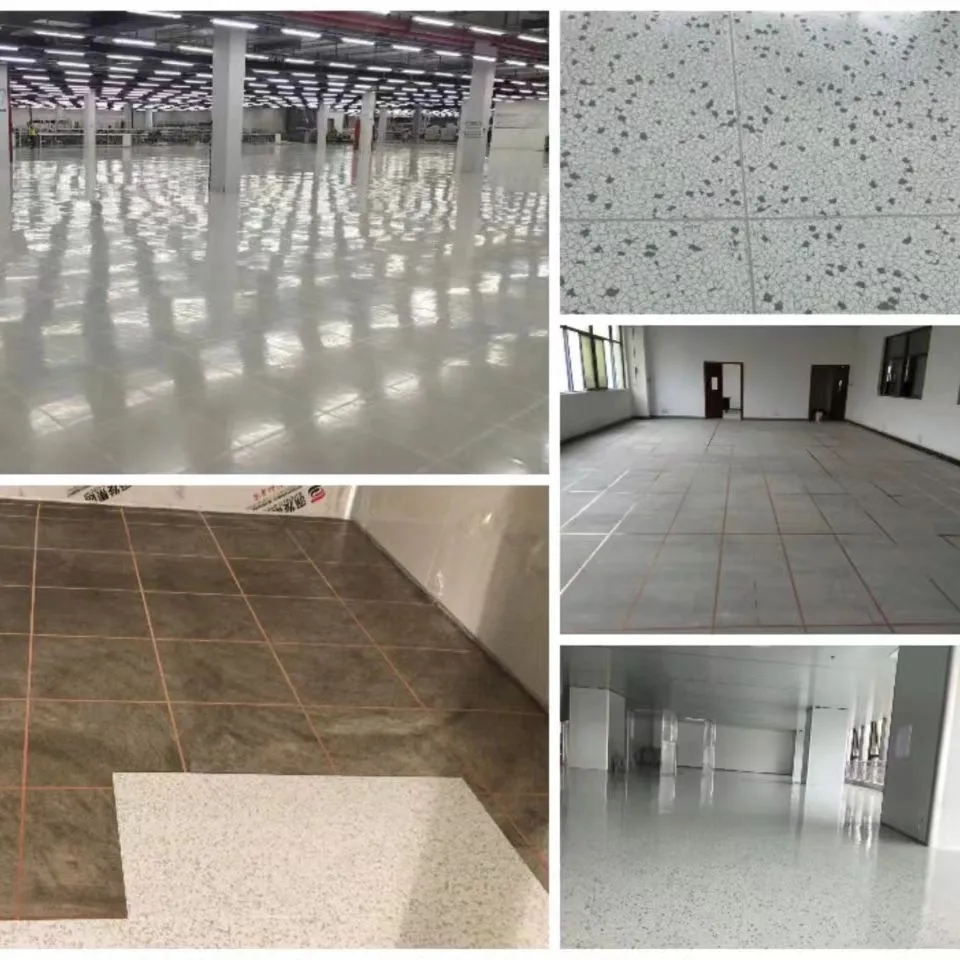

Installation Step 1

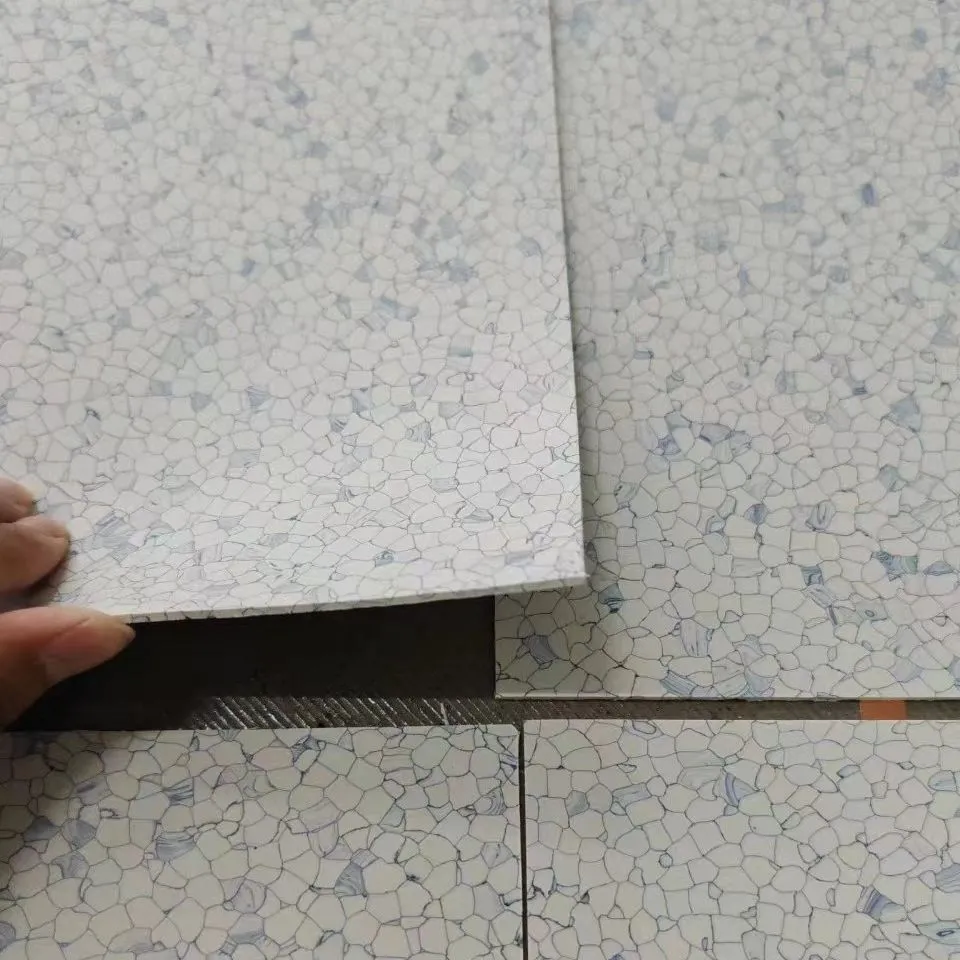

Installation Step 2

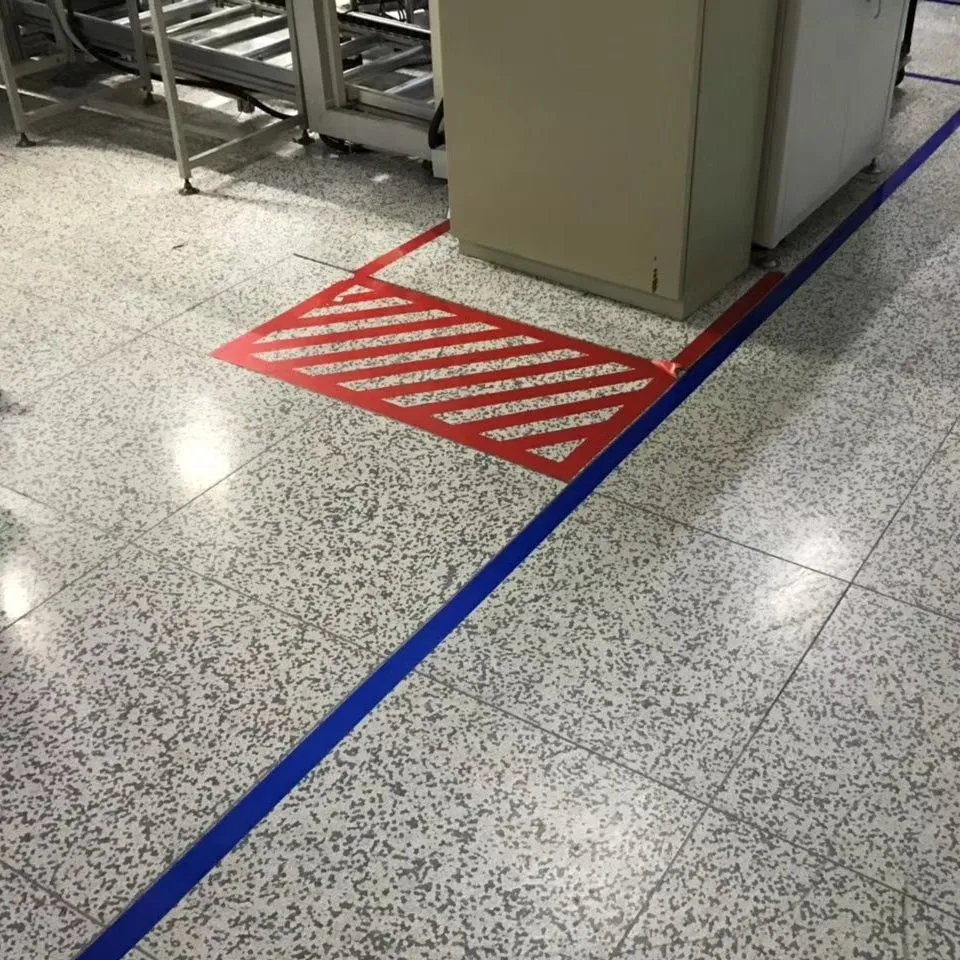

Installation Step 3

Certification: Fully compliant with international standards.

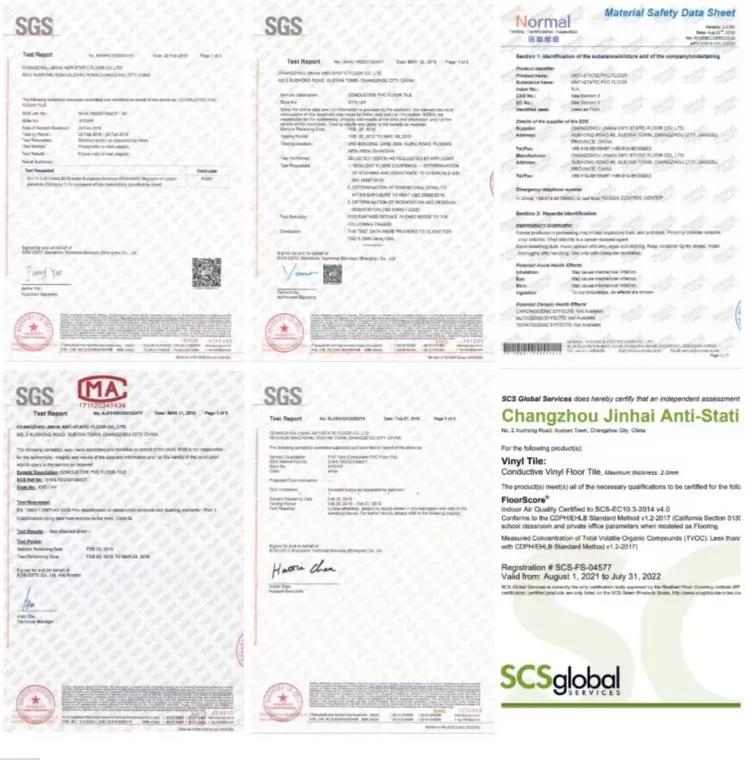

Certification Documents

Frequently Asked Questions

1. What sizes and thicknesses are available for conductive tiles?
Available sizes: 600mm x 600mm, 610mm x 610mm, 914.4mm x 914.4mm, and 305mm x 305mm. Available thicknesses: 2.0mm, 2.5mm, and 3.0mm.
2. What are the packing specifications for 600mm tiles?
For 600mm x 600mm x 2.0mm: 25pcs/box, 40boxes/pallet. A 20'GP container holds approximately 13 pallets (4680 sqm) with a gross weight of about 20,500 kgs.
3. Which payment methods are accepted?
We accept T/T, Letter of Credit (L/C), DDP, DA, and EXW terms.
4. What is the electronic resistance range?
Conductive tiles range from 10^4 to 10^6 Ohm, while anti-static tiles range from 10^6 to 10^9 Ohm.
5. Is there a product guarantee?
Yes, we provide after-sales support and quality assurance for our conductive tiles for over 2 years.
6. What makes the RHPP technology beneficial?
RHPP technology uses high pressure to close floor pores, making it more wear-resistant and stain-resistant while ensuring permanent conductivity.
