Prairie Floor
1 / 5
| Material | Metal / Steel | Size | 500*500mm, 600*600mm and Special Size |
| Function | Thermal Insulation, Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static | Metal Type | Steel |
| Core Thickness | 22-38mm | Certification | CE, ISO |
| Floor Height | 100-2000mm | Density | 1500-1700 Kg/M3 |
| Application | Electrical Factory, Computer Room, Bank, Offices | Surface | Simple Color / Customizable |

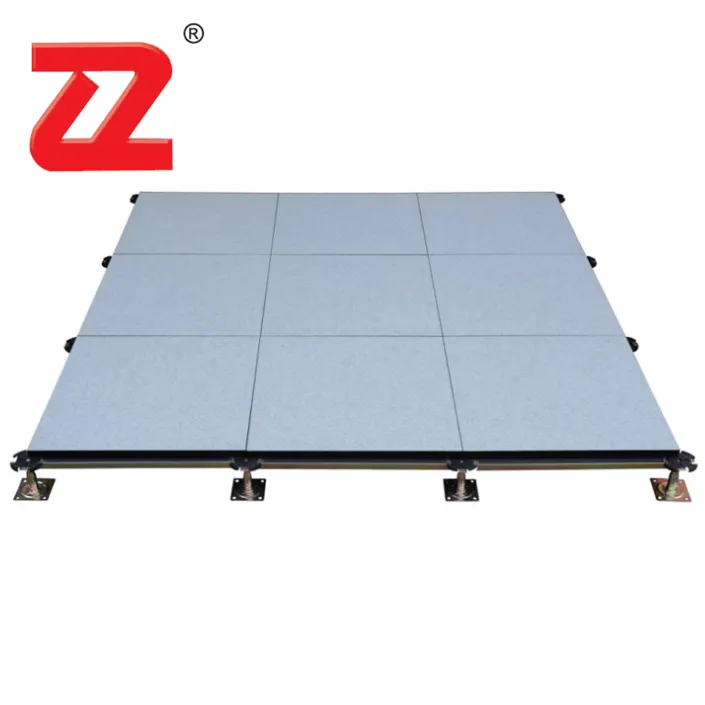

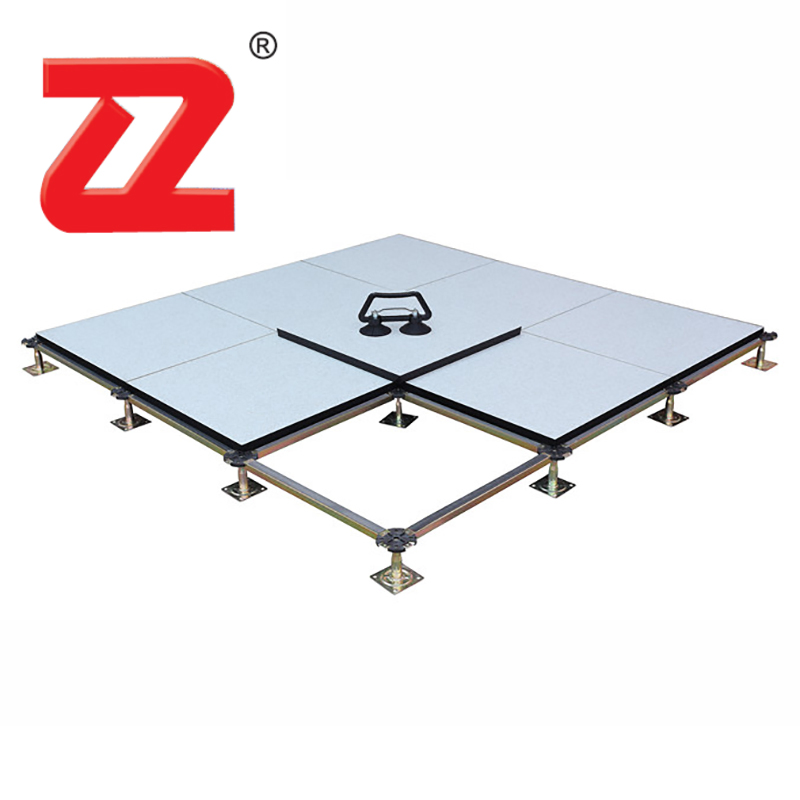

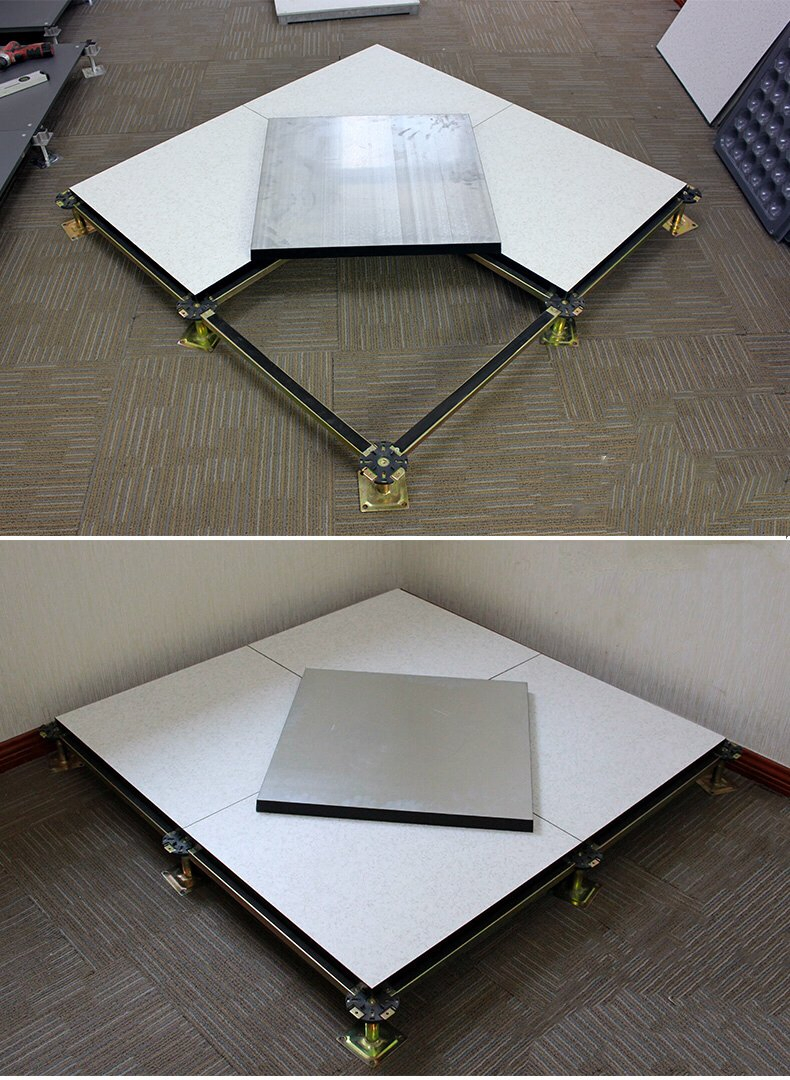

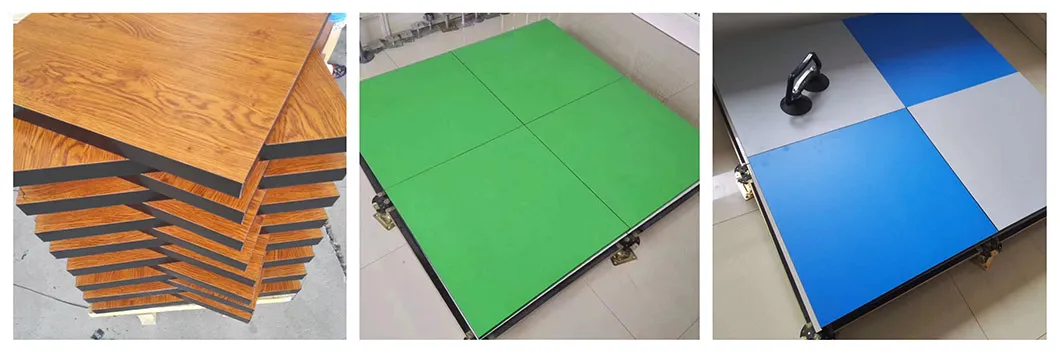

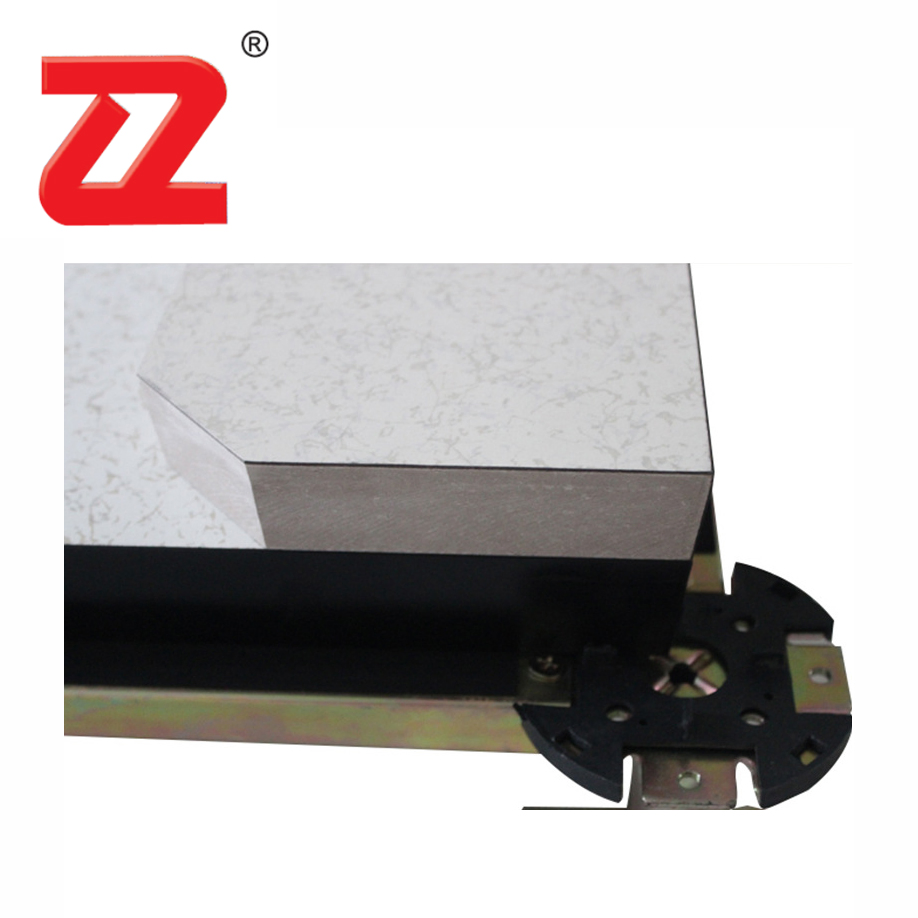

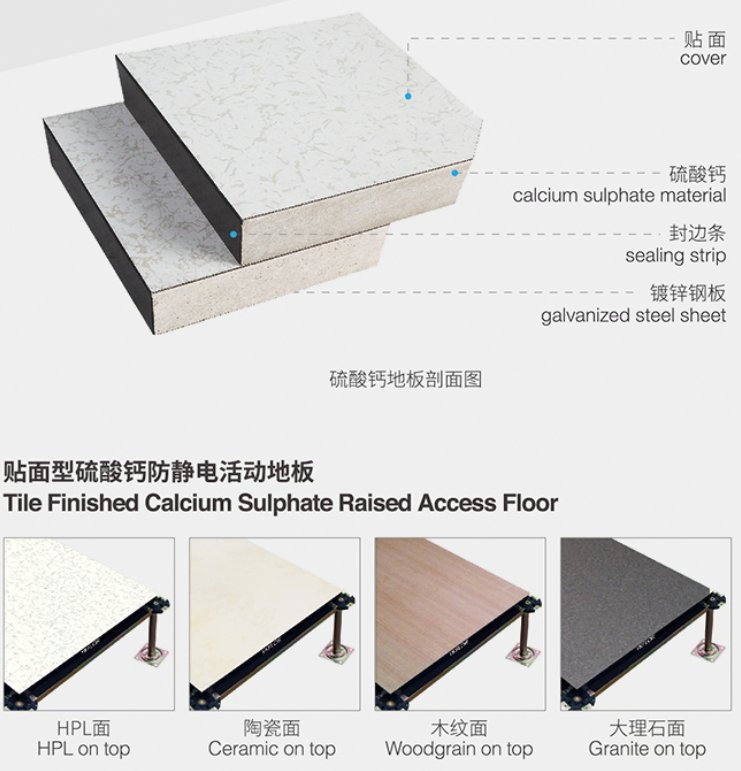

Anti-static Calcium Sulphate Raised Access Floor consists of a high-strength calcium sulphate core. A steel sheet is bonded to the bottom of the core, while HPL, PVC, or anti-static ceramic tiles are bonded to the top. A PVC edging strip is glued to each edge of the panel, effectively preventing common issues like floor bubbling and unglued phenomena.
| Type | Size (mm) | Concentrated Load | Ultimate Load | Uniform Load |
|---|---|---|---|---|
| FS1000 | 600*600 / 30-40mm | 4.45 KN | 14.50 KN | 22.22 KN/m² |
| FS1250 | 600*600 / 30-40mm | 5.56 KN | 18.36 KN | 27.78 KN/m² |
| FS1500 | 600*600 / 30-40mm | 6.68 KN | 22.17 KN | 33.34 KN/m² |
| FS2000 | 600*600 / 30-40mm | 8.89 KN | 29.42 KN | 44.45 KN/m² |
| FS2500 | 600*600 / 30-40mm | 11.11 KN | 37.34 KN | 57.79 KN/m² |

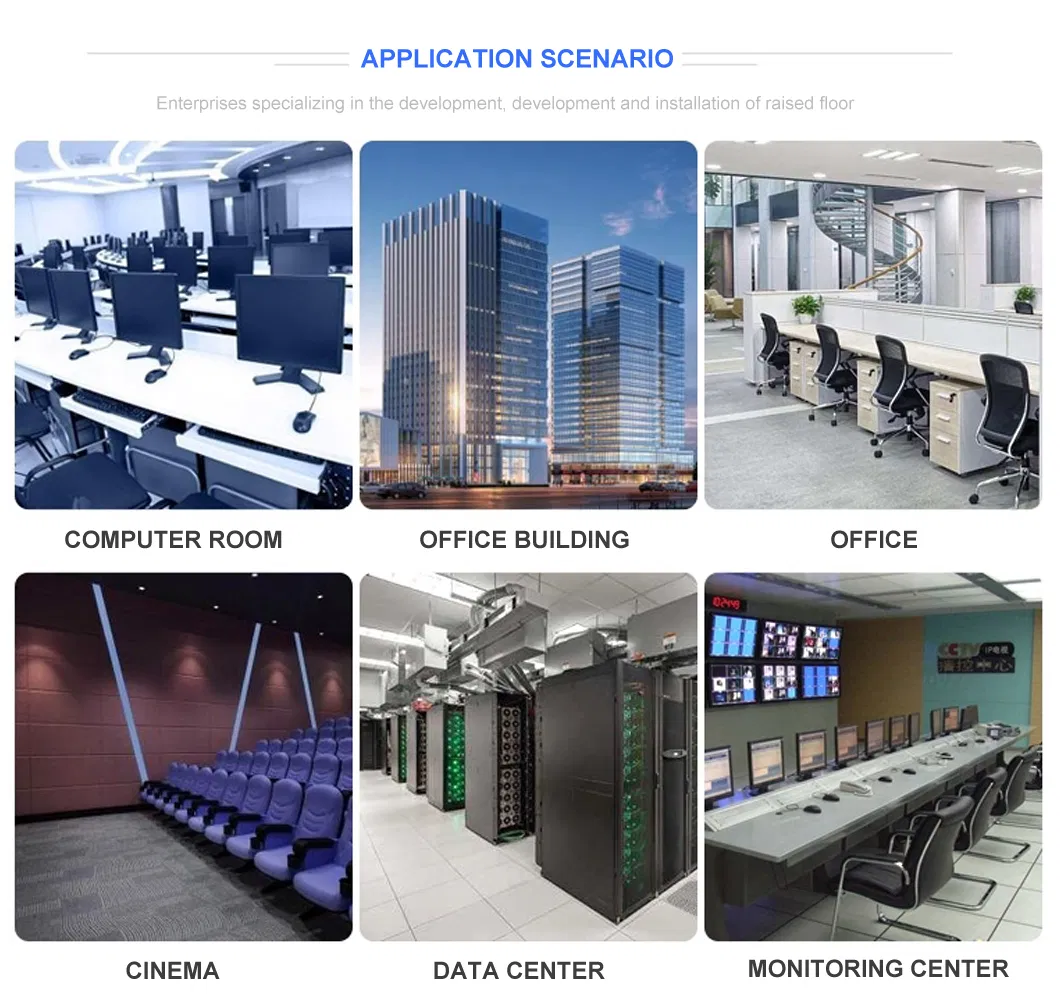

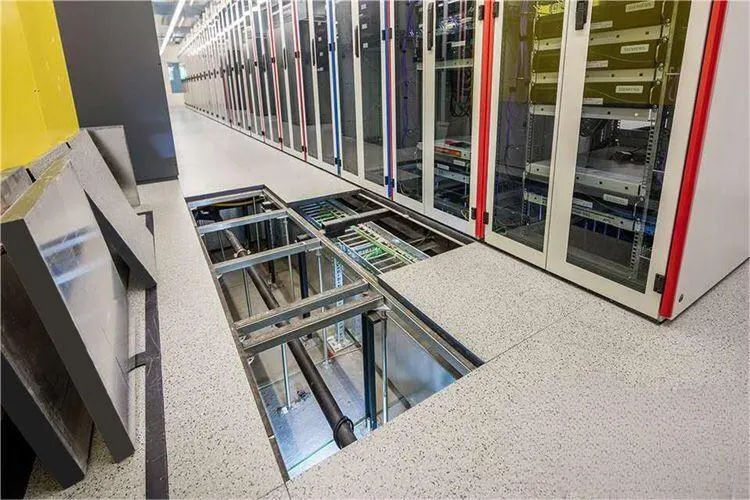

Anti-static calcium sulphate raised access floors are widely utilized in telecommunication rooms, power stations, computer rooms, factory clean rooms, and other mission-critical areas requiring advanced anti-static protection.

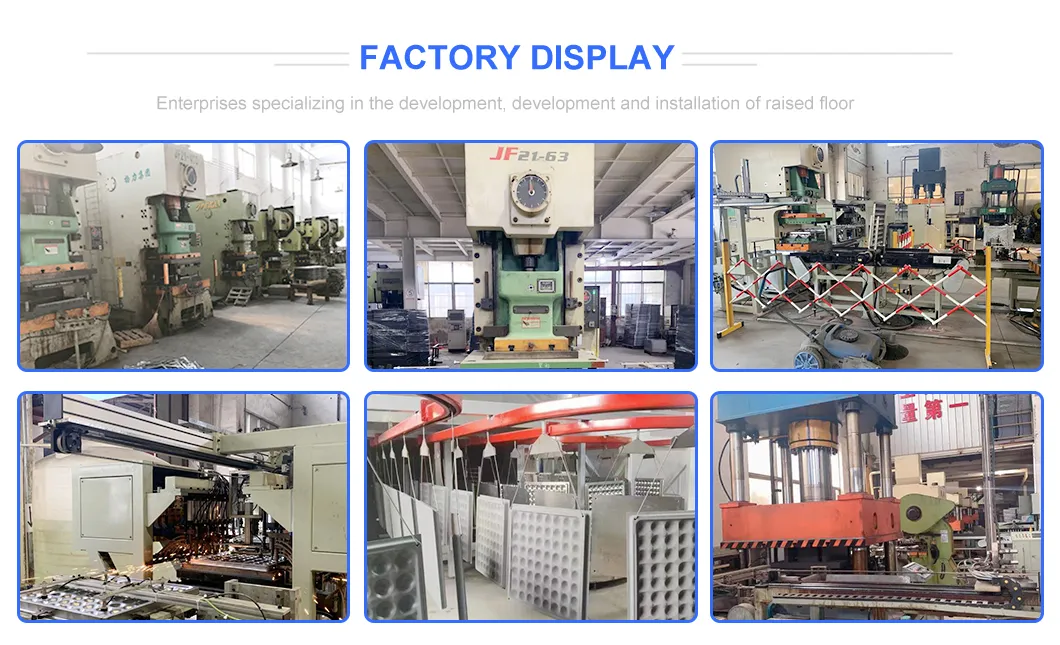

Founded in 1994, the facility covers an area of more than 30,000 square meters. It is strategically located for convenient transportation. The enterprise specializes in the development and installation of high-quality anti-static raised floors.
With ISO9001 international quality system certification, the facility maintains a business philosophy centered on selecting excellent materials and introducing sophisticated equipment. With an annual production capacity of 1,000,000 square meters, these products are widely used in scientific research, education, communication, and finance sectors globally.
