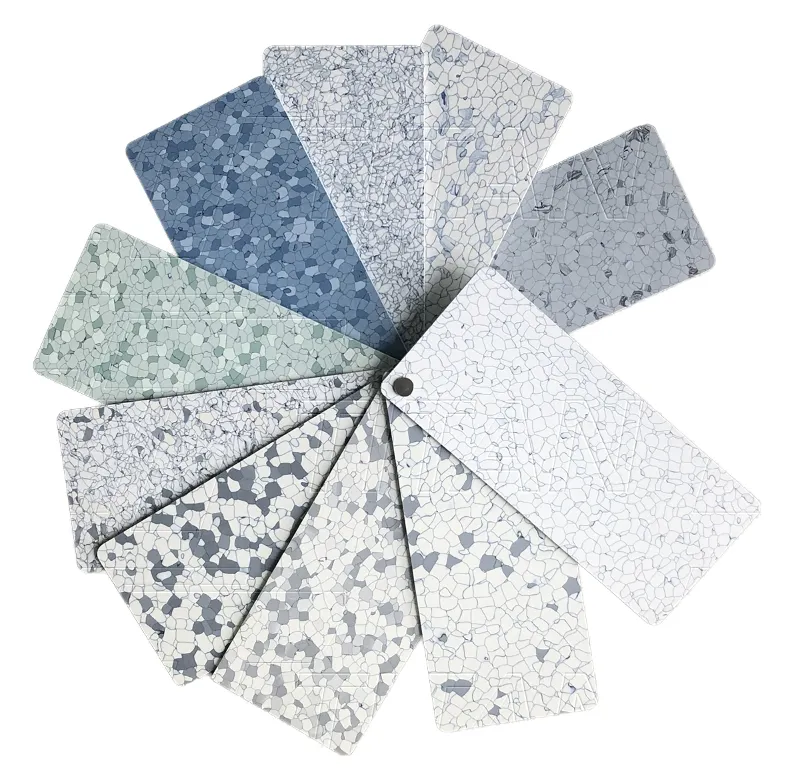

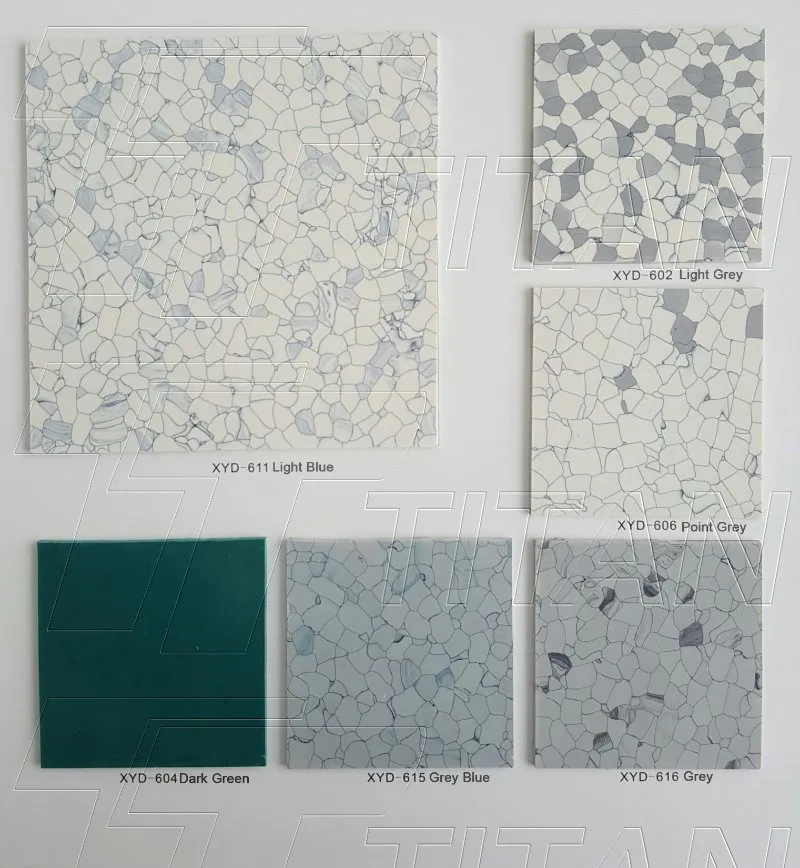

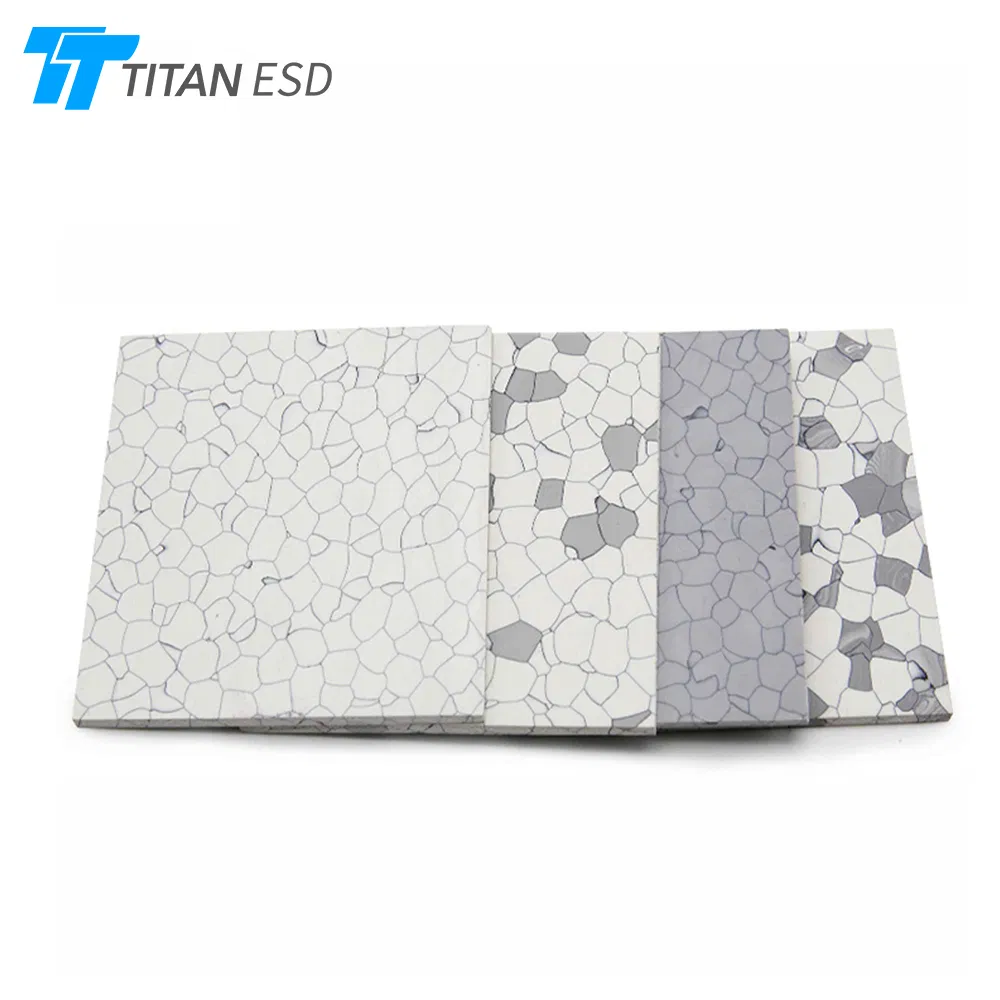

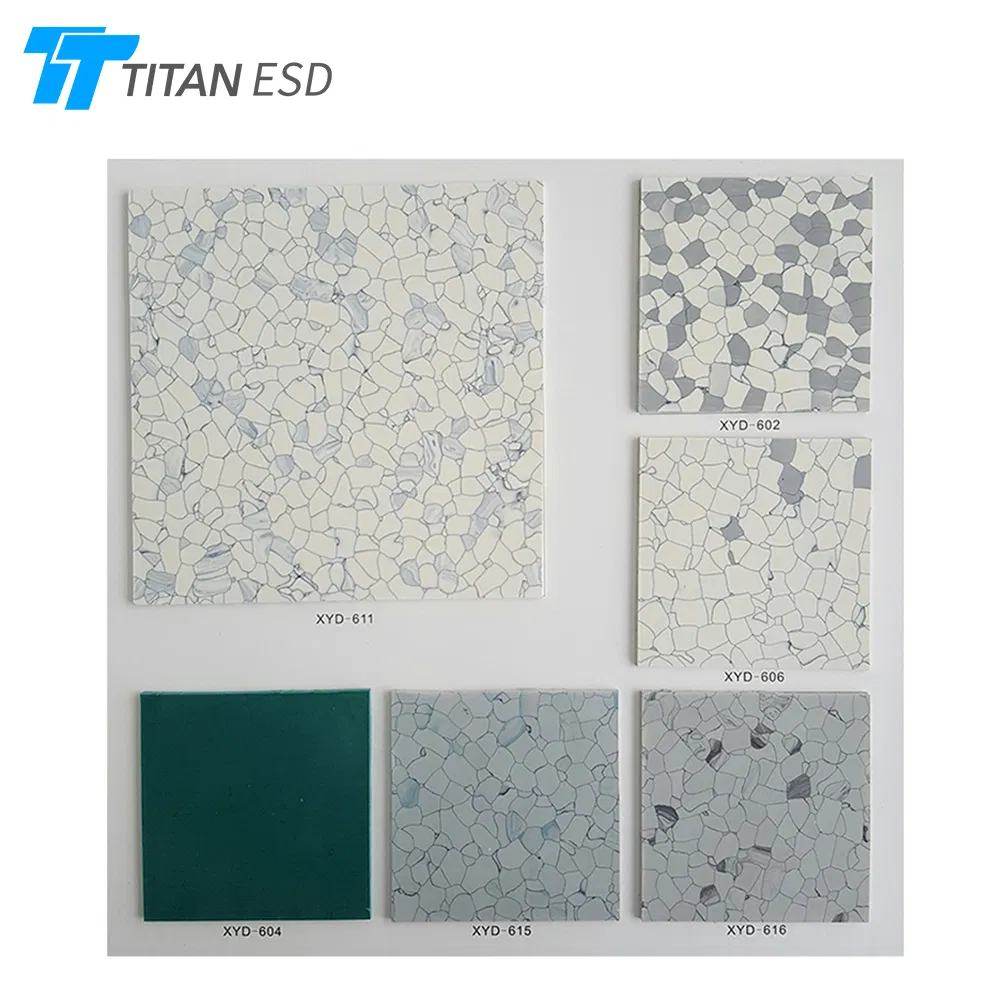

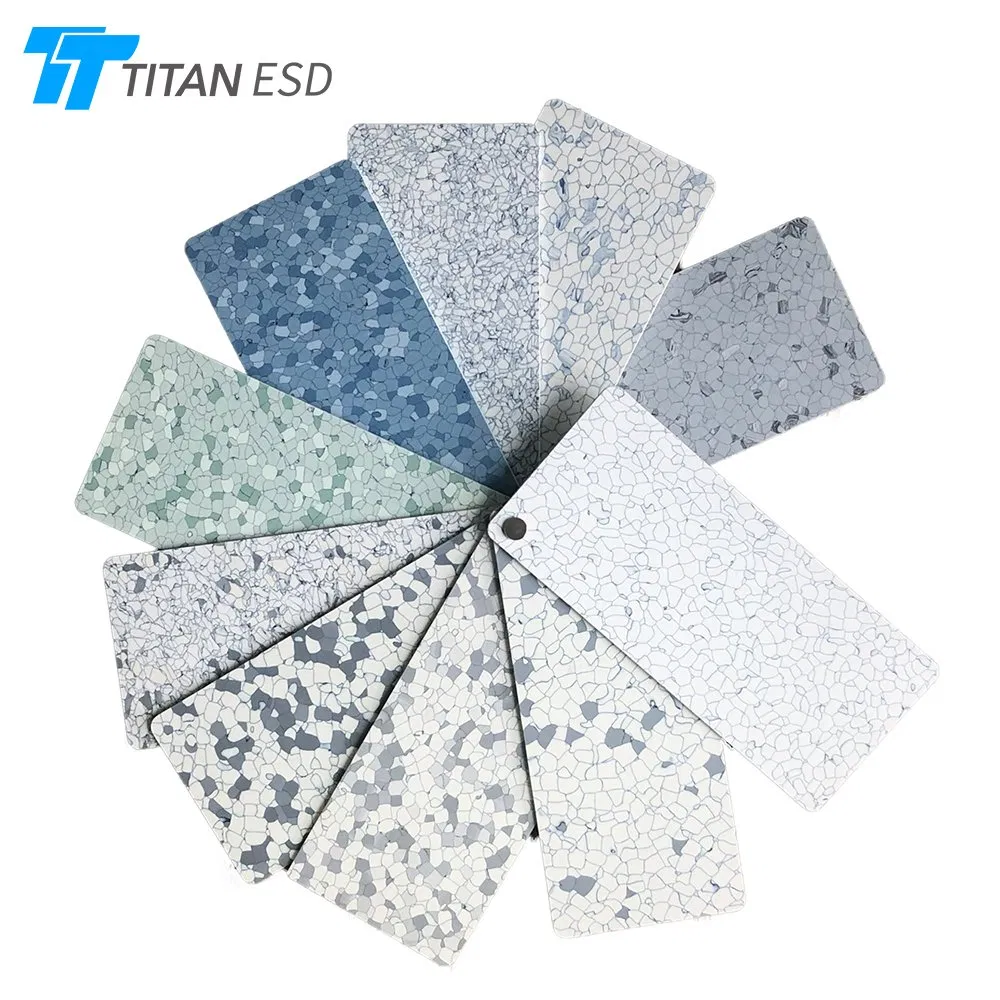

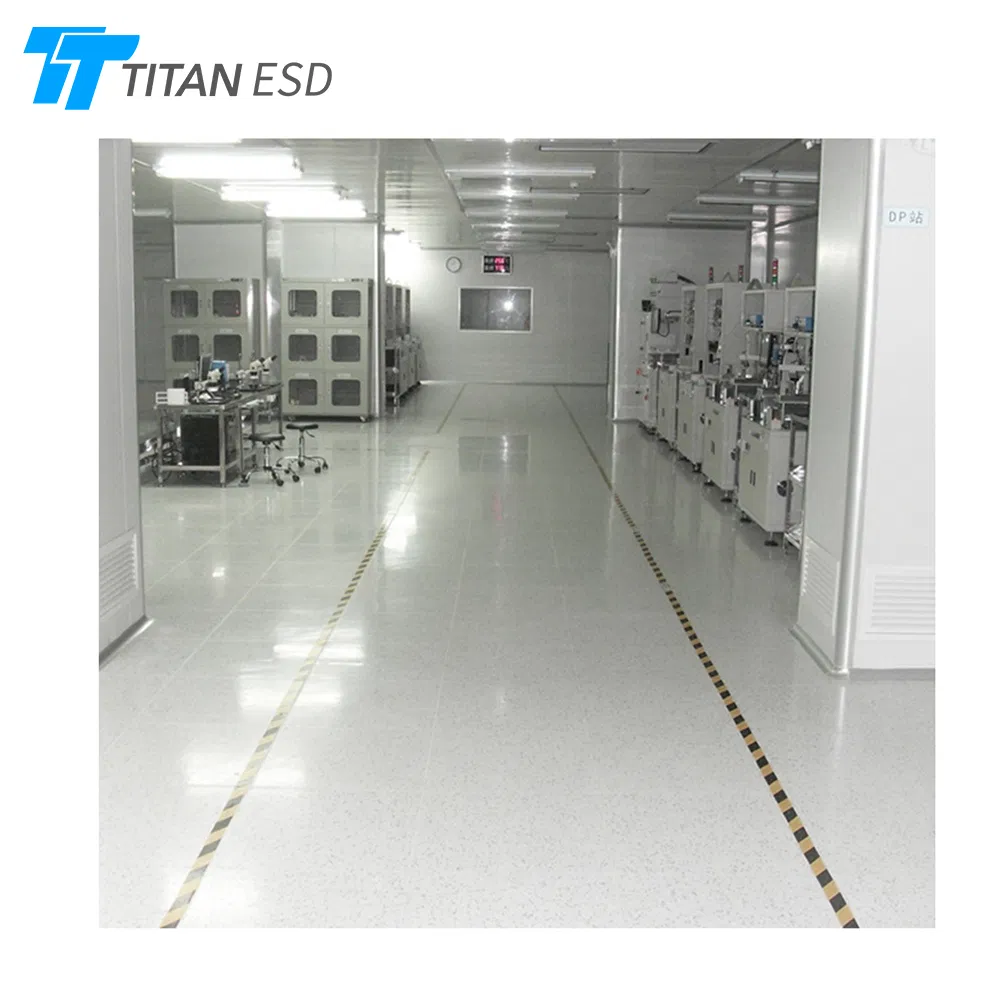

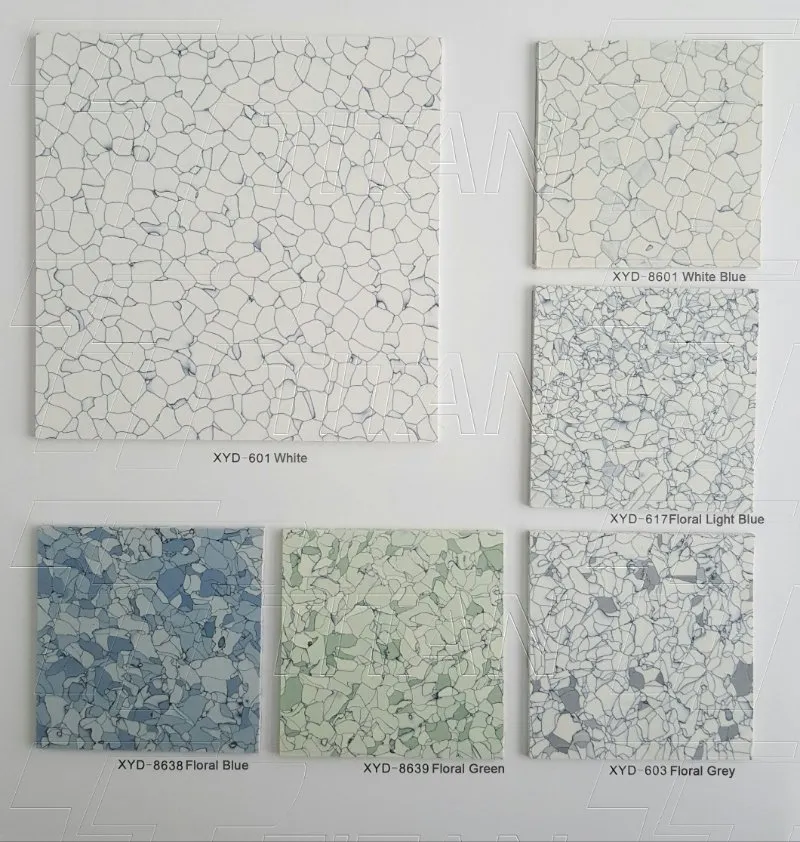

Conductive anti-Static PVC floor for semiconductor cleanroom is an electrostatically conductive network, which is formed by the interface of plastic particles. It ensures the permanent conductive properties of ESD flooring. The main materials of ESD flooring tiles are polyvinyl chloride resin, conductive materials, stabilizers, plasticizers, pigments, and other auxiliary materials. The pattern of an ESD flooring tile resembles a marble pattern, it has a good decorative effect.
| Item | Standard | Data |
|---|---|---|

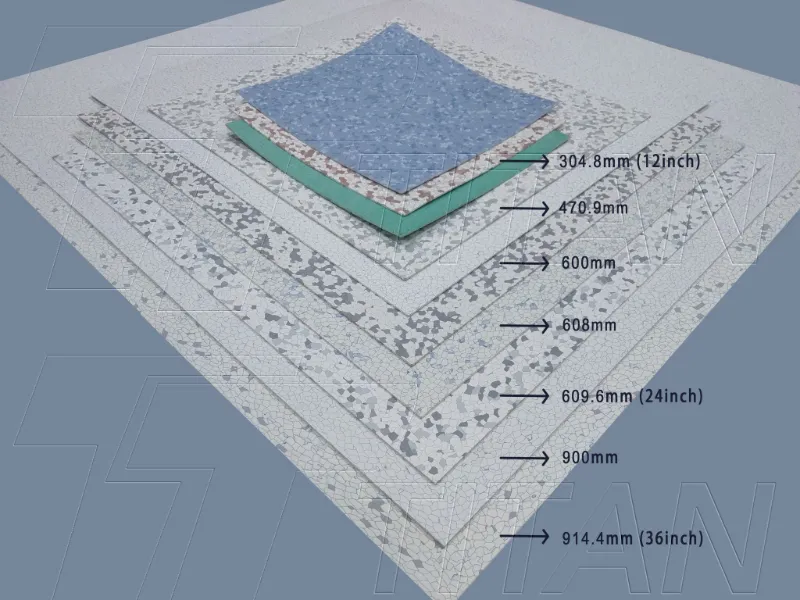

| Size (mm) | EN427 | Standard: 600*600, 610*610, 900*900; Custom: 305*305, 608*608, 914*914 |
| Thickness (mm) | EN428 | 2.0, 2.5, 3.0 |
| Weight (g/m2) | EN430 | 3980 (2mm Thickness) |
| Dimensional | EN434 | ≤0.25% |

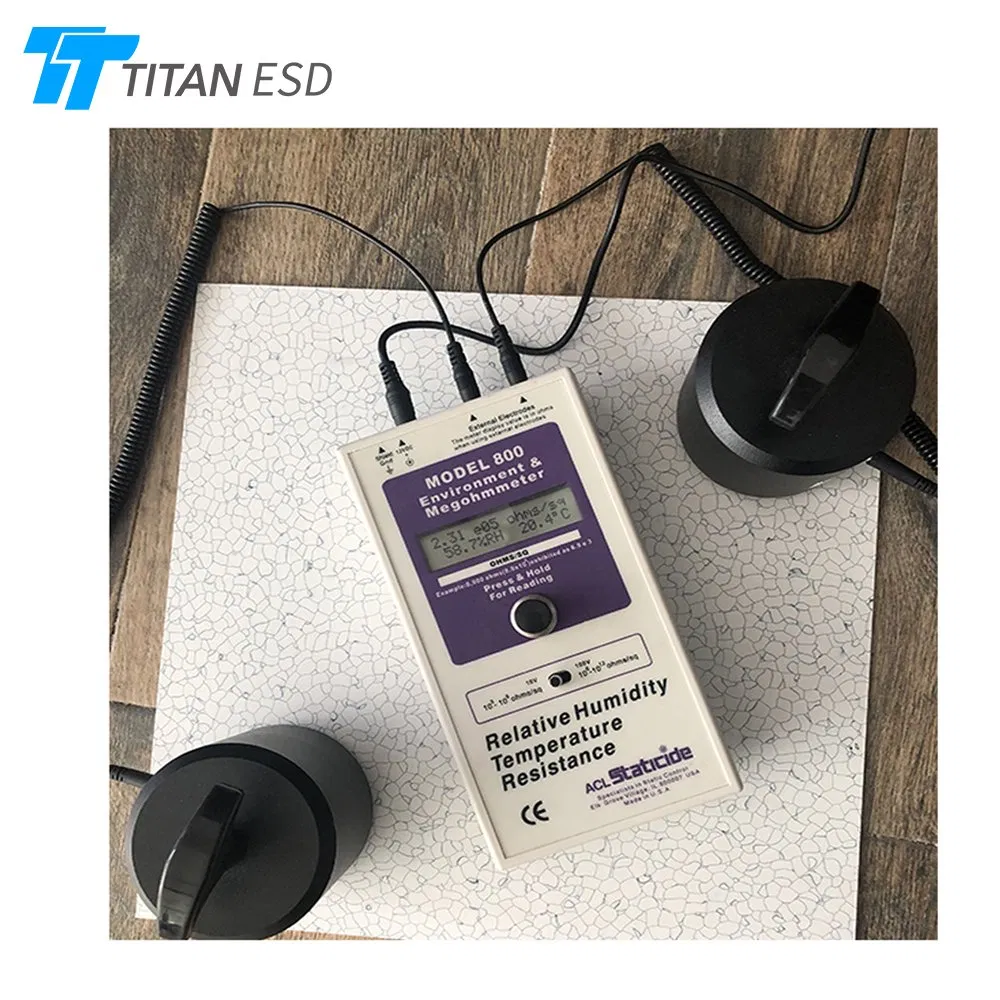

| Electrical Resistance | EN1081 | Conductive EC 104-106 / Dispassive SD 106-109 |
| Fire Resistance | EN13501-1 | Bfl-s1 |
| Slip Resistance | DIN 51130 | R9 |

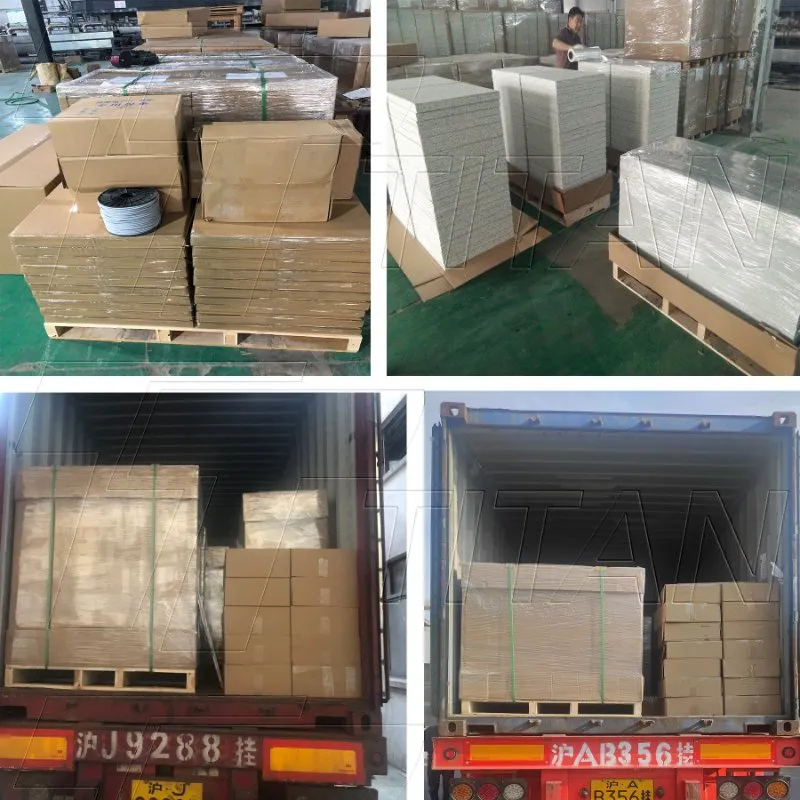

1. Standard 20ft container can load 12 pallets.
2. One 20ft container can load 4320m² (2mm thick) or 3024m² (3mm thick) with matched accessories including adhesive & welding rods.

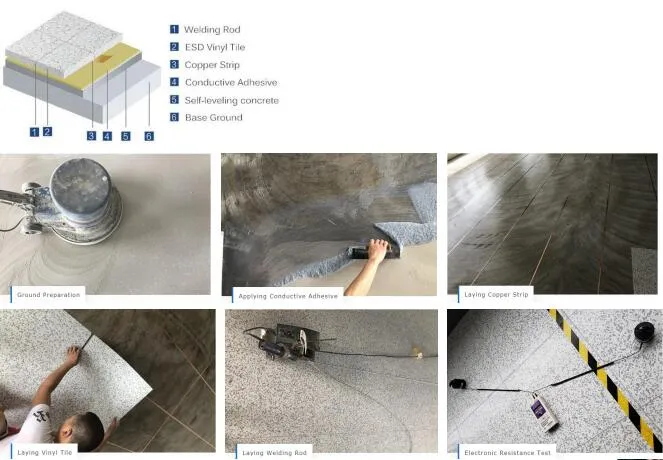

The conductive PVC floor should be installed on subfloors that are leveled, smooth, and free of cracks. Residual humidity should be under 2.5% (CM Dumb test). Tiles, adhesive, and the site should reach a temperature of at least 18ºC for 24 hours prior to installation. Tiles must be pasted with qualified conductive glue below 105 Ohm.

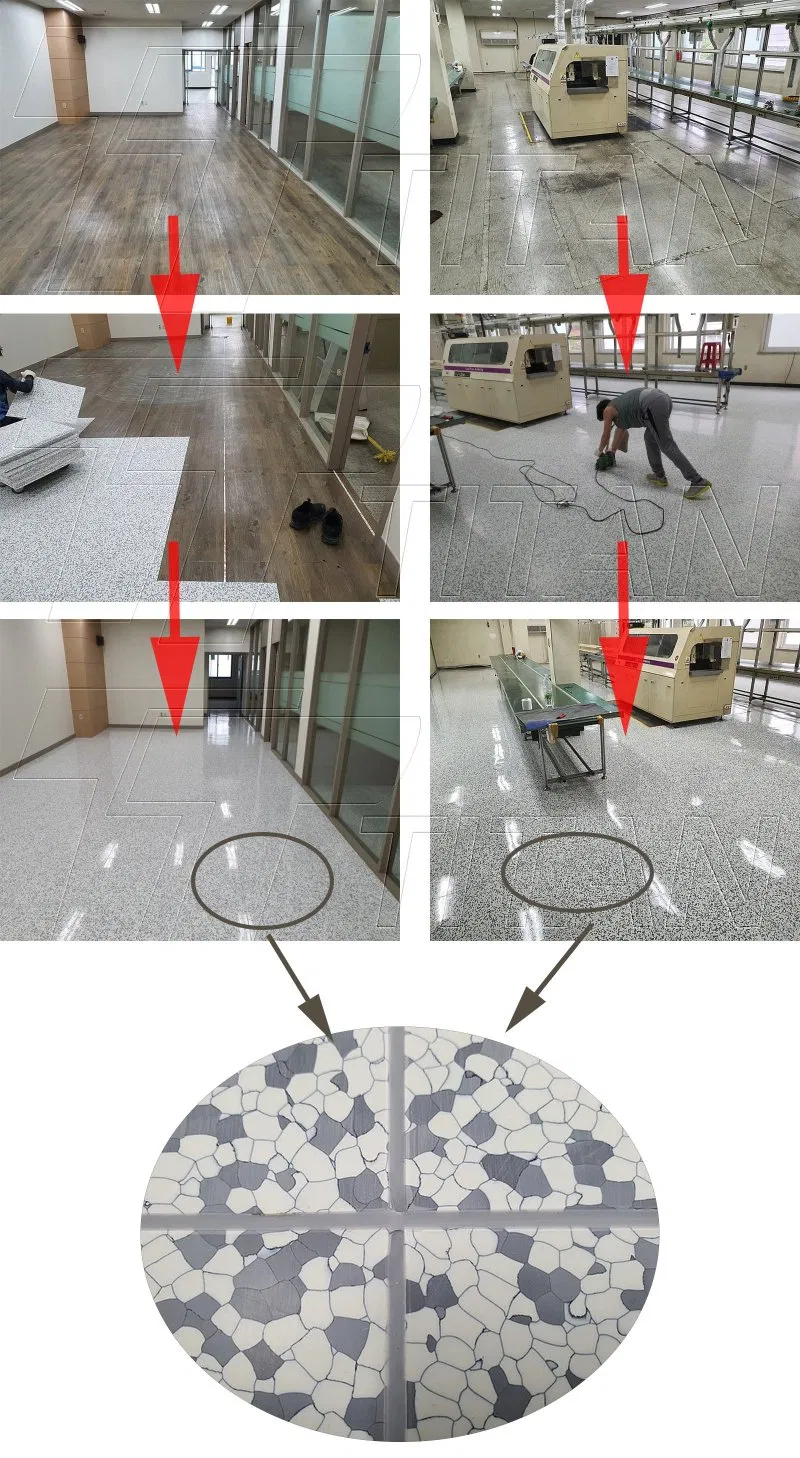

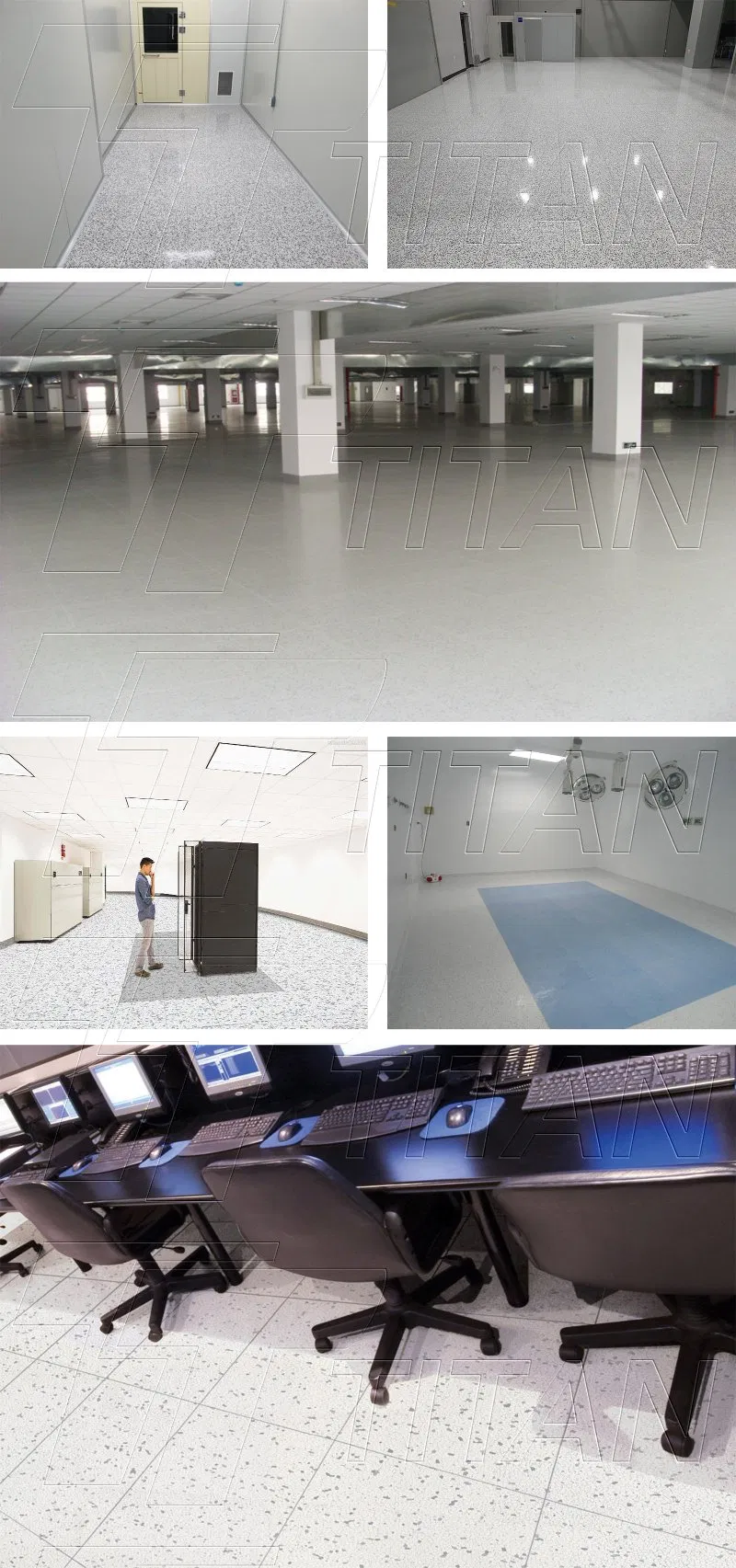

Widely applied to electronics, microelectronics, telecommunications, network floors, clean rooms, computer rooms, and other precision instrument environments.
