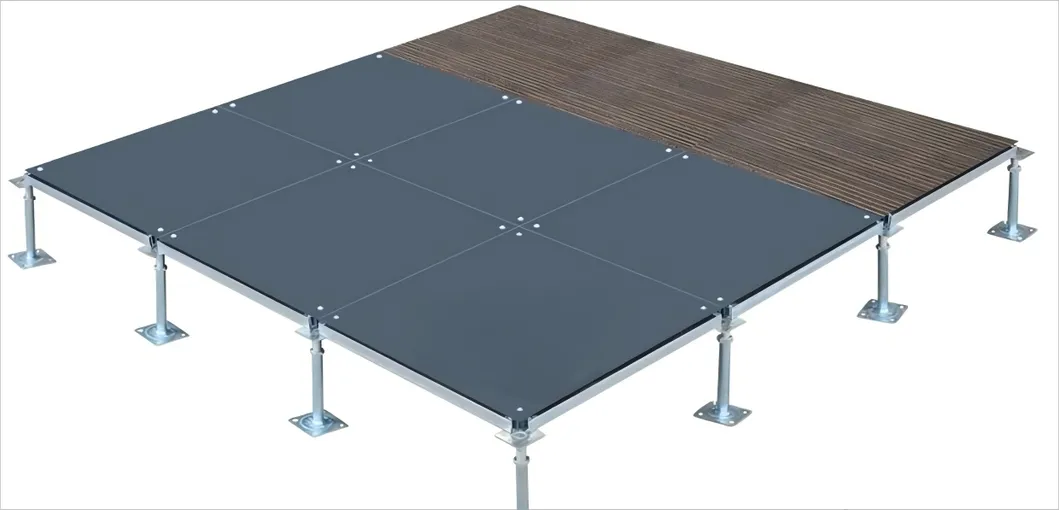

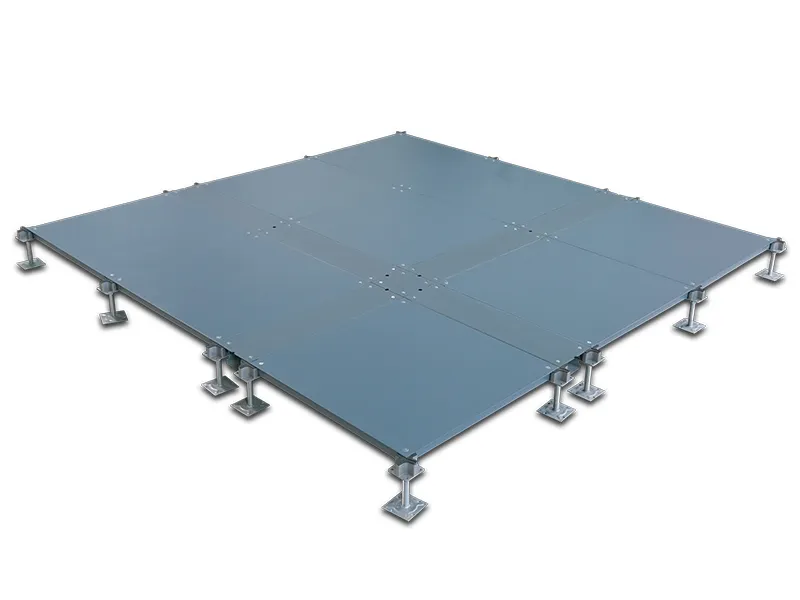

Our Anti-Static Steel Raised Access Floor system is designed to provide superior static control in high-tech environments. Crafted from high-quality galvanized steel, this robust flooring solution is ideal for data centers, server rooms, laboratories, and manufacturing facilities where electrostatic discharge (ESD) poses a serious risk to sensitive equipment. With its modular design, excellent load-bearing capacity, and effective static dissipation capabilities, this system ensures optimal performance and protection for your most critical operations.
Advanced anti-static finish prevents the buildup of static electricity, keeping delicate electronics safe from ESD.
Designed to withstand heavy equipment and high traffic without compromising integrity.

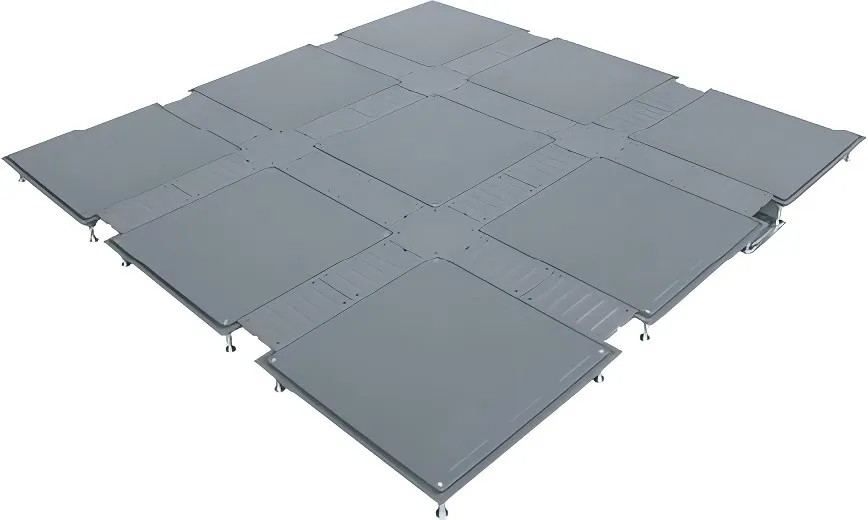

Individual panels can be easily removed or replaced, ensuring minimal disruption to your space.

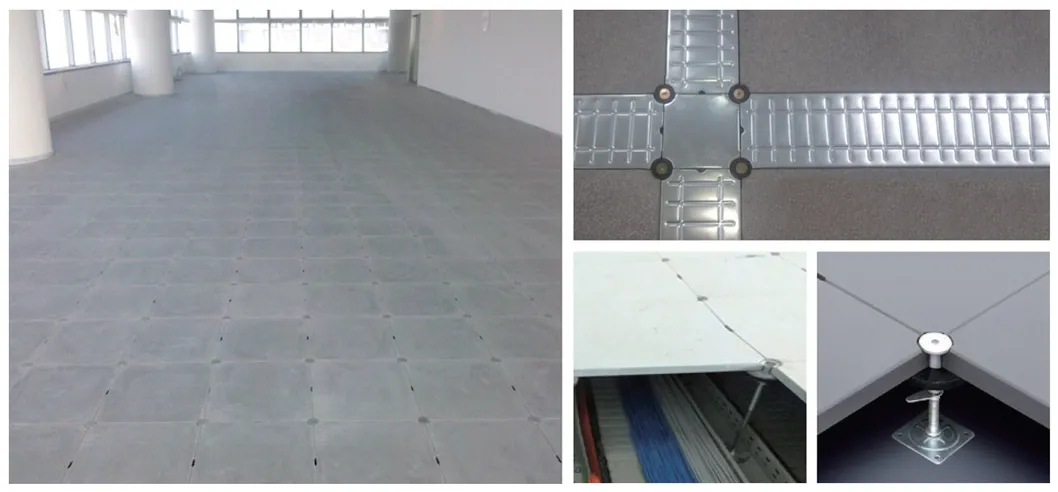

Organize cables under the floor to improve aesthetics and enhance airflow for cooling.
| Type | Size | Rolling Load | Uniform Load | Ultimate Load | Concentrate Load (2.5mm deflection) | ||
|---|---|---|---|---|---|---|---|
| 10 PASS | 10K PASS | LB | KN | ||||
| FS662 | 600*600*33mm | 2.45KN | 2.00KN | 3300LB/M² | 2000LB | 662LB | 2.94KN |
| FS800 | 600*600*33mm | 2.94KN | 2.45KN | 4000LB/M² | 2530LB | 800LB | 3.56KN |
| FS1000 | 600*600*33mm | 3.56KN | 2.67KN | 5000LB/M² | 3260LB | 1000LB | 4.45KN |
| FS1250 | 600*600*33mm | 4.45KN | 3.56KN | 6250LB/M² | 4130LB | 1250LB | 5.56KN |
| FS1500 | 600*600*33mm | 5.56KN | 4.45KN | 7500LB/M² | 5000LB | 1500LB | 6.68KN |
