UV Laser Marking Machine High Precision Printer for Plastic and Metal

Customization:	Available
After-sales Service:	Online Services
Warranty:	1 Year

Send Inquiry

Product Description

📊 Basic Information

Model NO.

HS-UV5/ HS-UV10

Laser Visibility

Invisible

Applicable Material

Nonmetal

Cooling System

Water Cooling

Technical Class

Continuous Wave Laser

Laser Wavelength

355nm

Type

UV Laser Marking

Marking Method

Scanning Marking

Laser Power

5W / 10W Option

Printing Speed

12000 mm/S

Working Area

110*110 mm / 600X600mm Customized

Language

English /Korean / Russian/Spainish / Arabic

UV Laser Marking & Engraving Technology

❄️ Cold Marking Process

UV lasers use high-energy photons to break molecular bonds directly ("photochemical ablation") rather than relying on heat. This creates virtually no heat damage, melting, or burring. Perfect for heat-sensitive materials like thin plastics, films, and medical devices.

🎯 Exceptional Precision

The short 355nm wavelength focuses to a much smaller spot size than IR or CO2 lasers. This allows for extremely fine details, tiny fonts (micron level), and sharp QR codes ideal for micro-electronics.

💎 Material Versatility

Plastics: High-contrast marks on ABS, polycarbonate, and nylon.
Metals: Effective on gold, silver, copper, and polished aluminum.
Glass: Produces clean, frosted marks without micro-cracking.

♻️ Low Operating Costs

No inks, solvents, or printheads are needed. Maintenance is minimal, requiring only electricity and occasional lens cleaning, reducing downtime and VOC emissions.

🏭 Industrial Applications

This equipment is designed for high-speed production line assembly across various industries:

Food processing industry
Precision hardware
Household appliances
Cosmetics & daily products
Electronic components
Automobile manufacturing
Beverage production lines
Medical device marking

⚙️ Technical Parameters

UV Laser Printer Technical Specifications
Model Number: HS-UV5 / HS-UV10	Red Pointer: Yes
Laser Power: 5W / 10W Option	Cooling System: Water Cooled
Laser Type: Nanosecond UV Generator	Marking Line Type: Dot Matrix, Vector
Laser Wavelength: 355nm	Positioning: Red Light & Infrared Focus
Printing Speed: 12000 mm/s	Production Line Speed: 0-250m/min
Working Area: 110*110mm (Up to 600mm)	File Format: BMP/DXF/HPGL/JPEG/PLT
Power Supply: 220V 50/60HZ	Max Power Consumption: 750W
Connection: USB 2.0 / Photoelectric	Protection Level: IP54 (Glavo Head)

❓ Frequently Asked Questions

1. What is "Cold Marking" and why is it beneficial?

Cold marking uses a photochemical reaction with a short 355nm wavelength to break material bonds without generating heat. This prevents melting, charring, or deformation, making it ideal for delicate plastics and medical materials.

2. Can this machine mark on both metals and non-metals?

Yes. While exceptionally efficient on plastics, glass, and ceramics, it also works effectively on high-reflectivity metals like gold, silver, copper, and polished aluminum.

3. How durable are the marks produced by the UV laser?

The marks are permanent and integrated into the material surface. They are resistant to fading, rubbing, scratching, and harsh chemical solvents.

4. Does the UV laser marking machine require ink or ribbons?

No, it is a consumable-free technology. Unlike inkjet printers, there is no need for ink, solvents, or ribbons, significantly reducing long-term operating costs.

5. Can it be integrated into a fast-moving production line?

Absolutely. With marking speeds up to 12,000 mm/s and support for production line speeds up to 250m/min, it is specifically designed for high-speed industrial integration.

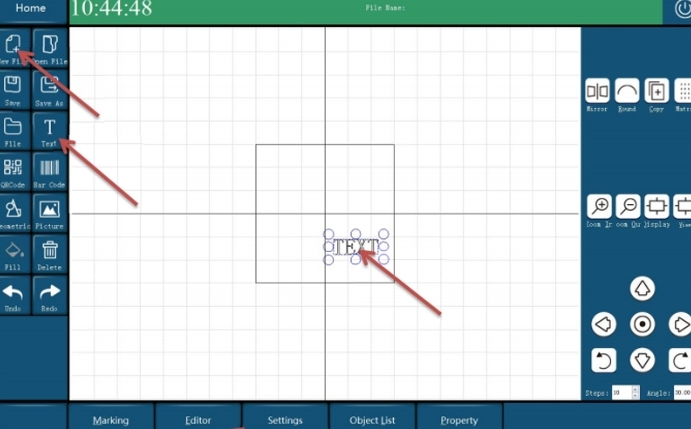

6. What file formats does the software support?

The system supports standard industrial formats including BMP, DXF, HPGL, JPEG, and PLT, allowing for easy import of logos and complex vector graphics.
